The format

As explained in Floating point numbers
FP8 (E4M3): 1 bit sign, 4 bits exponent, 3 bits mantissa; range: $2^{- 6} = 0.015625$ to $2^{8} (1 + (1 - 2^{- 2})) \approx 448$ .
- more precision
- *WARNING: E4M3’s dynamic range is extended by not representing infinities and having only one mantissa bit-pattern for NaNs. Greater range achieved is much more useful than supporting multiple encodings for the special values
FP8 (E5M2): 1 bit sign, 5 bits exponent, 2 bits mantissa; range: $2^{- 14} \approx 6.1 \times 1 0^{- 5}$ to $2^{15} (1 + (1 - 2^{- 2})) = 57344$
- more range

When to use E4M3 and E5M2

Partition the DL network graph into safe and unsafe regions
- Safe regions contain operations (MLPs)
  - benefiting from reduced precision
  - whose outputs dynamic ranges are similar to the inputs
- Unsafe examples: exponentiation
Loss scaling
- Use the scaling factor during the backward pass to ensure all gradient values are in the correct range. Mentioned in Gradient scaling (fp16)

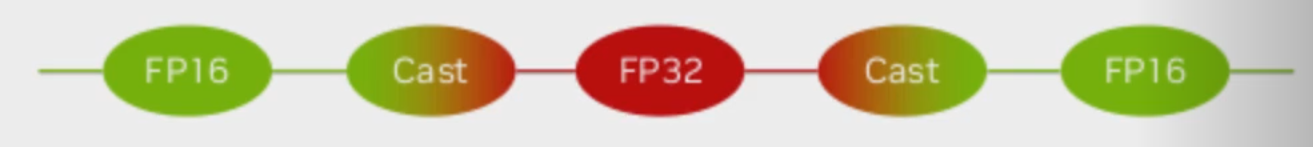

Partition the DL network graph into safe and unsafe regions
- Unsafe regions does not necessarily need to be FP32, FP8 training recipe can be combined with FP16/BF16 recipe
- Explicit casts are not enough - FP8 operators need to use higher precision internally and be able to output higher precision output
  - in the matmul, the internal accumulator is in FP32, even if the hardware does an FP8 operation
    - Tensor Cores on Hopper GPUs have the option to accumulate matrix products directly into FP32, resulting in better numerical accuracy and avoiding the need for a separate casting kernel.
    - (only for hopper cores)
  - thus, we can output high precision even when using a FP8 linear layer
One loss scaling is not enough ⇒ Use per-tensor scaling factors
- Scaling factors are needed in both passes
  - E4M3 for forward, E5M2 for backward

Simple conceptually (find the maximum, and scale to that the max is in range) but it’s hard in practice
Impossible to keep the entire high precision output in the high speed memory to find the maximum and scale with it

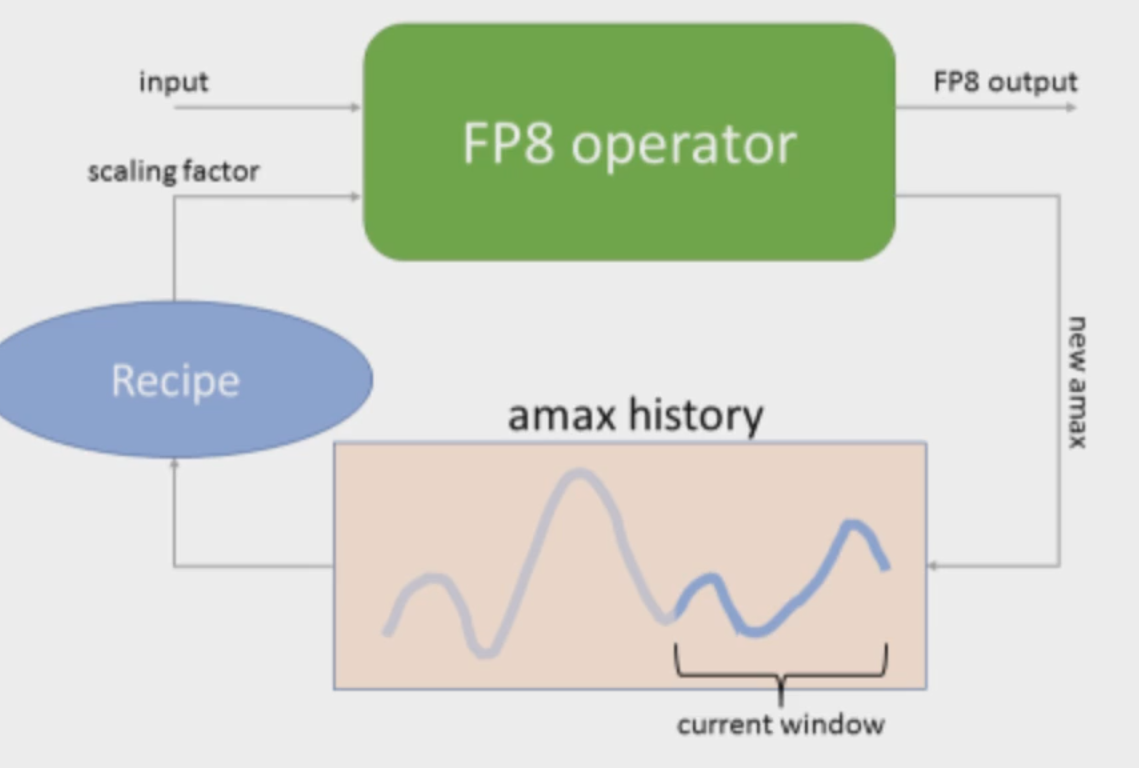

To overcome that, we need to know the scaling factor before seeing the output ⇒ keep track of history
