Quantization methods with rotations

Sources:

• HALO: Hadamard-Assisted Lower-Precision Optimization for LLMs

• QuaRot: Outlier-Free 4-Bit Inference in Rotated LLMs

• SpinQuant: LLM Quantization with Learned Rotations

• As a reminder, rotation matrices are orthogonal matrices.

• For the math, please refer to Using orthogonal matrices for better quantization - The math

The method

• QuaRot and SpinQuant are very similar, so we’ll cover their constructions together.

• A summary of the rules derived in How to use orthogonal matrices in a classic residual NN (purely offline)

  • use RMSNorm (pre or post-norm is fine)
  • The embedding matrix should be offline right-mutliplied
  • The input featurizer weights should be offline left-multiplied (e.g. QKV projections, gate and up projection in SwiGLU)
    • We can absorb the RMSNorm diagonals scaling parameters $(\alpha )$ into the input featurizer pre-processing.
  • The output featurizer weights should be offline right-multiplied (usually just a linear layer)
  • The LM head matrix should be offline left-mutliplied

• Such rules apply for any residual block consisting of pre/post-norm, a featurizer (e.g. QKV), an operator/system (e.g. self-attention), and an output featurizer (e.g. $W_O$).

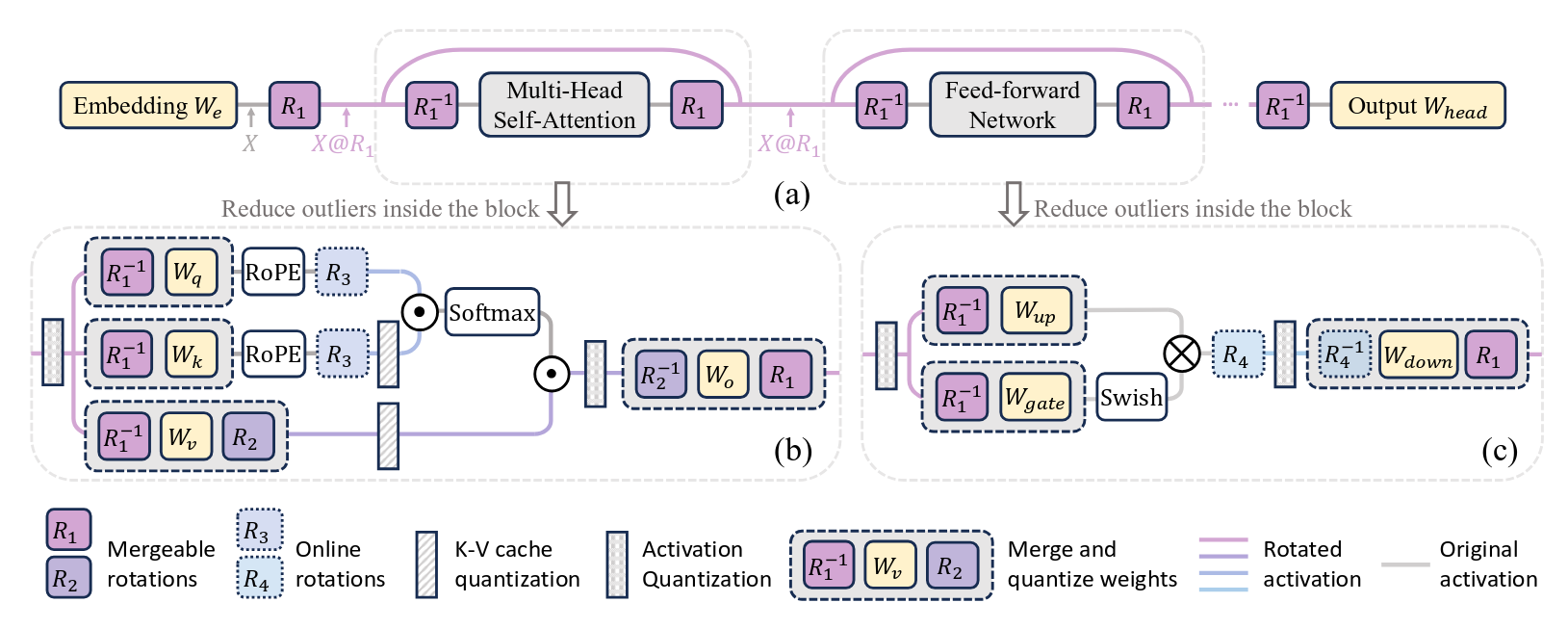

Diagram of the above rules

• Additionally, we can decide to optionally apply online rotations to reduce outliers within a block, usually before or after the application of the operator.
  • For the KV-cache
    • in order to be able to store the KV cache quantized.
    • This is at the cost of one rotation during prefill, and two rotations during decode (one before quantizing the new KV values, one before dequantizing the current KV values)
  • After the gating in the SwiGLU
    • This is at the cost of one rotation before quantizing the gate output

How to choose the rotation matrices?

• As said in Hadamard matrices, using such structured matrices allows us to use Walsh-Hadamard transform, which computes the matrix-vector product $\mathbf{Hx}$ in $\mathcal{O}(d{\log }_2(d))$ operations.

  • This is especially important if we use online rotation.

• However, any random orthogonal matrix (obtained by taking $Q$ from the QR-decomposition $A=QR$ on any random real matrix $A$) is theoretically sufficient.

• However, according to SpinQuant, the performance variance given a random matrix is quite large.

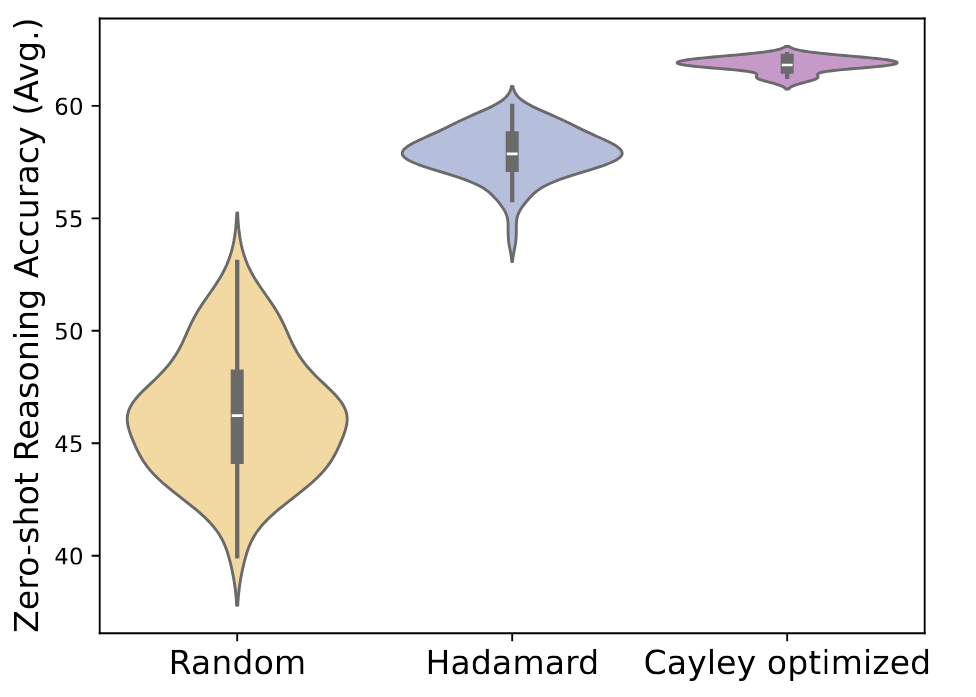

Zero-shot accuracy of W4A4

• Thus, SpinQuant learn $R_1$ and $R_2$ on the Stiefel manifold i.e. the set of all orthnormal matrices. They use Cayley SGD.

${\text{argmin}}_{R\in \mathcal{M}}{\mathcal{L}}_Q(R_1,R_2|W,X)$

How to quantize the rotated weights?

• Both methods use GPTQ after having rotated the weights.
• One reason why these methods work well with GPTQ is that the activations are rotated.
  • Remember that a random rotation turns a fixed vector $x$ into a direction whose coordinates behave as if they were i.i.d. $\mathcal{N}(0,\Vert x{\Vert }_2^2/d)$.
  • Beyond the fact the fact this reduces outliers with high probability, this also decorrelates $X$, meaning that the covariance matrix $\Sigma =X{X}^T$ is nearly diagonal. This makes the optimization problem better behaved :)
