Prefix Sum - Scan algorithm

• Relevant for efficient Linear RNNs and State Space Models (SSMs)

Definition

• Takes:
  • An input array $[x_0,\dots ,x_n]$
  • An associate operator $\oplus$
    • e.g. sum, product, min, max
• Returns:
  • An output array $[y_0,\dots ,y_{n-1}]$
    • Inclusive scan: $y_i=x_0\oplus \dots \oplus x_i$
      • $y_0=x_0$
    • Excluse scan: $y_i=x_0\oplus \dots \oplus x_{i-1}$
      • $y_0=\text{identity}$
        • e.g. 0 for sum

Parallel scan

• Parallel scan requires synchronization across parallel workers
  • On GPUs, it’s cheaper to synchronize with threads on the same thread block compared to across blocks.

Segmented scan

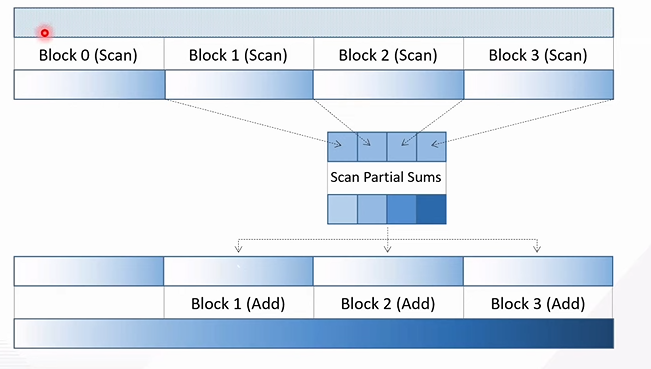

• Approach: segmented scan
  • Every thread block scans a segment
  • Scan the segments’ partial sums (parallel across blocks)
  • Add each segment’s scanned partial sum last value to the next segment
    • This is another scan but with the last value of each segments.
  • Diagram
    •

Parallel scan implementation within a single thread block

Kogge-Stone

Kogge-Stone example with 8 elements

• We’re looking at parallel (inclusive) scan

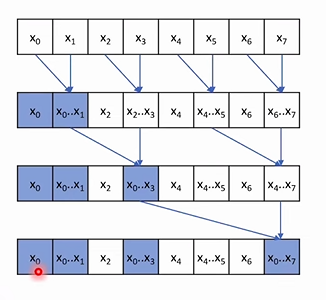

• Let’s do ONE parallel reduction tree
  • We write in place in the same array
  •
  • We get the last element, and some other as byproduct
    • Blue values are “already valid” solutions
  • SOME VALUE ARE NEVER TOUCHED e.g. $x_2,x_4,x_6$

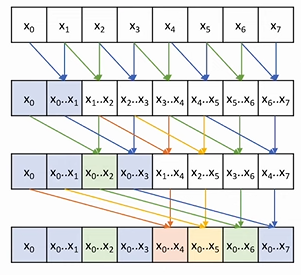

• Now, if we overlap and do 4 reduction trees, we get
  •
  • First iteration: for every element, add the element one step before it
  • Second iteration: for every element, add the element two steps before it
  • Third iteration: for every element, add the element four steps before it
• We get $O(logN)$ iterations

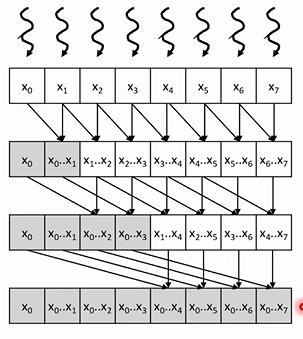

Kogge-Stone Parallel (Inclusive) Scan

• Use the above algorithm with one thread for each element
  •

Runtime analysis

• A parallel algorithm is work-efficient if it performs the same amount of work as the corresponding sequential algorithm
• Scan work efficiency
  • Sequential scan performs $N$ additions
  • Kogge-Stone parallel scan performs:
    • $log(N)$ steps, $N-2^{step}$ operations per step
    • Total: $(N-1)+(N-2)+\dots +(N-N/2)=N\ast log(N)-(N-1)==O(N\ast log(N))$ operations
  • Algorithm is not work efficient
• If resources are limited, parallel algorithm will be slow because of low work efficiency

Implementation

Memory optimization

• The input array $x$ is in global memory
  • It doesn’t make sense to keep reading and writing to and from global memory
• Load once to a shared memory buffer, and do everything in shared memory
• Write out at the end

Details

• You need to sync the threads between every iteration

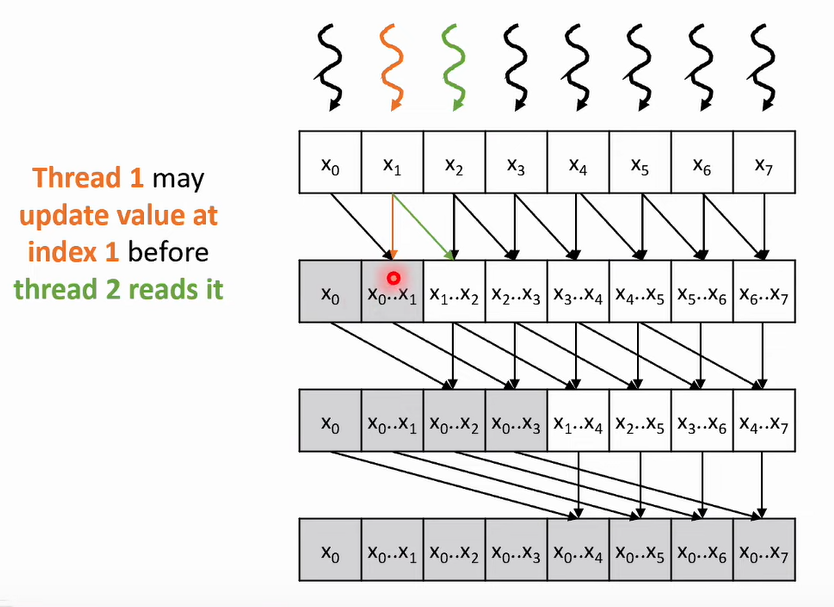

• You need to be careful of race conditions
  •
  • To fix it, you need to ensure that all threads finish reading, before starting to write
    • read → __syncthreads(); → write
  • Better way to do it

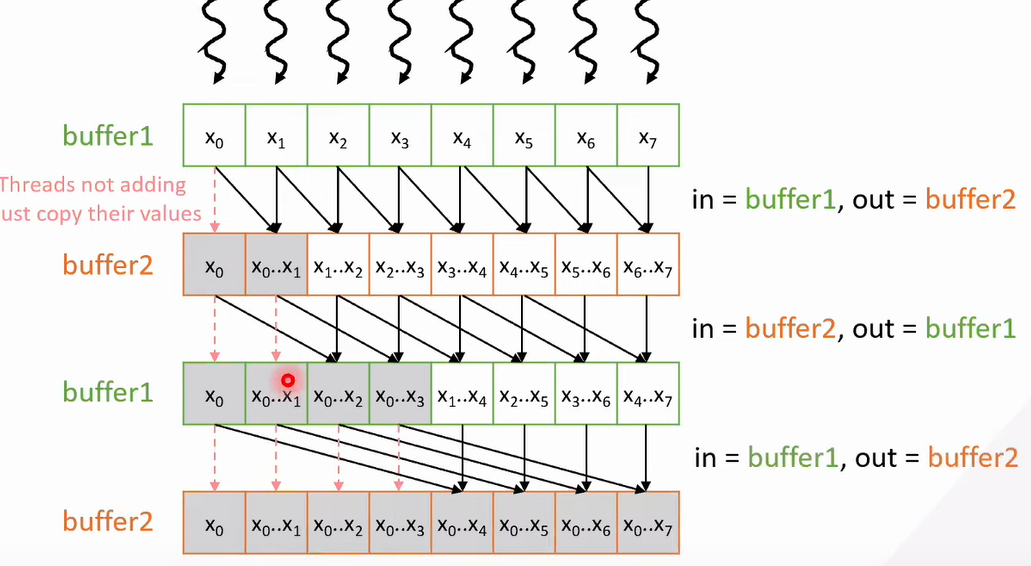

    • double buffering
      • read from buffer1, write to buffer 2
      • alternate (read from buffer 2, write in buffer 1)
      •

Brent-Kung

• Brent-Kung takes more steps but is more work-efficient

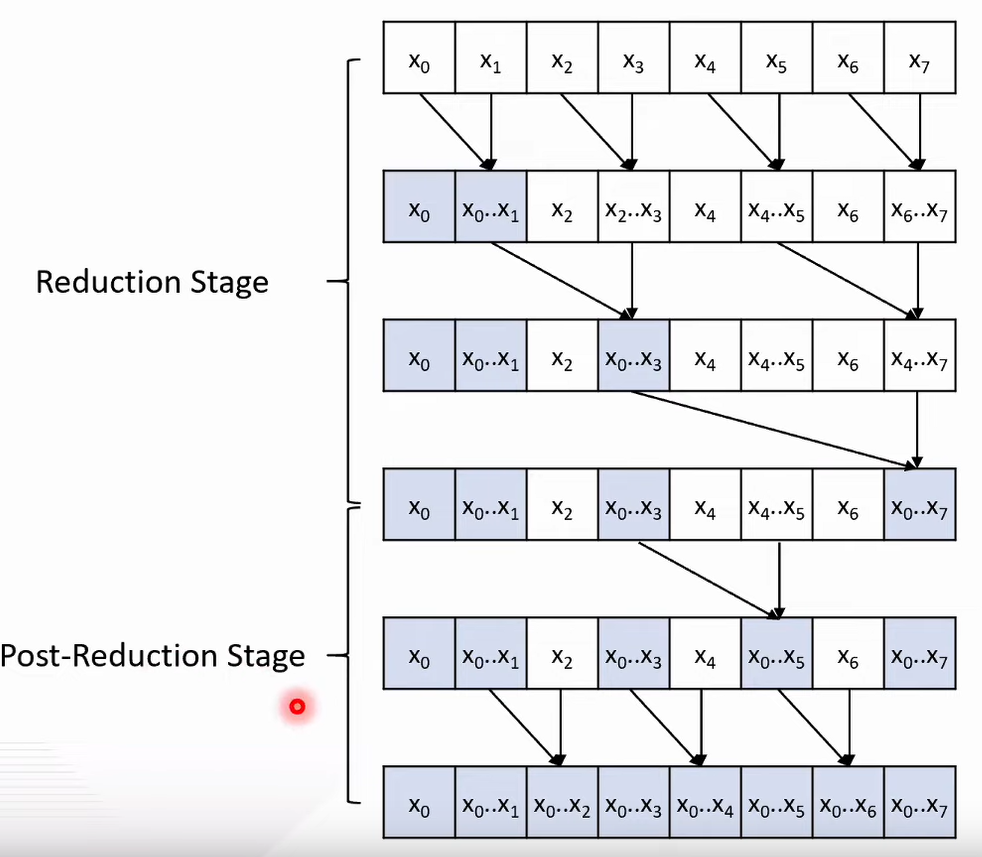

Brent-Kung example with 8 elements

• Diagram
  •

Analysis

• Reduction stage:
  • $log(N)$ steps
  • $N/2+N/4+\dots +2+1=N-1$ operations
• Post-reduction stage:
  • $log(N)-1$ steps
  • $(2-1)+(4-1)+\dots +(N/2-1)=(N-2)-(log(N)-1)$ operations
• Total:
  • $2\ast log(N)-1$ steps
  • $2\ast N-log(N)-2=O(N)$ operations
