Nanotron code organisation

• nanotron.distributed file

  • wrapper around torch.distributed
  • they use @cache decorator for get_rank type calls
    • get_global_rank cache has a speedup of 4 tflops on a 7b model
  • get_rank(group) gives the “local” rank of a process within the given group
  • get_global_rank(group, group_rank) gives the global rank given the local rank within a given group

  • Is this correct? I though rank was unstable, given nodes can fail? Depends on how failure is handled

• nanotron.trainer file

  • Defines DistributedTrainer
    • can log the throughput by setting env variable “NANOTRON_BENCHMARK”=1
  • _init_model()
    • init RoPE
    • builds the model using build_model()
    • make_ddp = DP > 1 and not(grad_accum_in_fp32 and zero_stage>0)
      • model = DistributedDataParallel(model, process_group=parallel_context.dp_pg, broadcast_buffers=False, bucket_cap_mb=config.model.ddp_bucket_cap_mb)
        • bucket_cap_mb – DistributedDataParallel will bucket parameters into multiple buckets so that gradient reduction of each bucket can potentially overlap with backward computation. bucket_cap_mb controls the bucket size in MegaBytes (MB). (default: 25)
        • broadcast_buffers (bool) – Flag that enables syncing (broadcasting) buffers of the module at beginning of the forward function. (default: True)

• nanotron.models module

  • defines the NanotronModel class
    • contains its parallel context
    • input_pp_rank and output_pp_rank
  • build_model()
    • first get model = model_builder() e.g. LLama definition
    • gets all model chunks and defines the pipeline
      • computes compute cost to balance compute across PP blocks
      • assigns pipeline blocks to a given rank/process according to computed assignment
      • sequential assignment ⇒ assumes G-Pipe or 1F1B, doesn’t work with interleaved 1F1B

• nanotron.helpers file

  • _vocab_size_with_padding(orig_vocab_size: int, tp_pg_size: int, make_vocab_size_divisible_by: int)

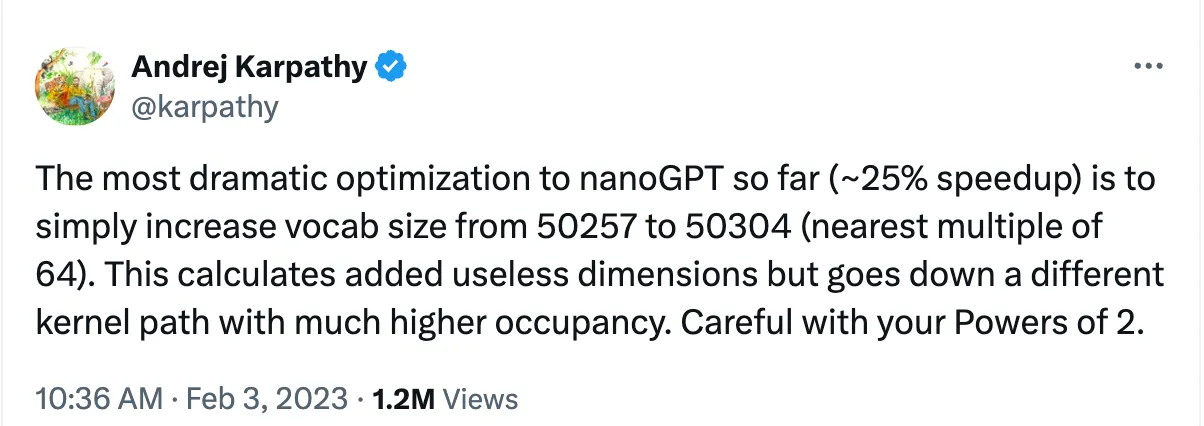

    • Pad vocab size so it is divisible by pg_size $\times$ make_vocab_size_divisible_by
    • pretty important!
      • https://www.thonking.ai/p/what-shapes-do-matrix-multiplications
      •

• nanotron.parallel module

  • context file

    • Defines ParallelContext
      • holds the 3D parallelism process groups definitions
    • Only nccl backend is supported for now. :(
      • For TPUs, you actually need to use XLA (Accelerated Linear Algebra)torch_xla.distributed.core.xla_model.mesh_reduce("loss, np.mean) instead of torch.distributed.reduce(loss, op=torch.distributed.ReduceOp.SUM)
      • The reason is that many backends (except nccl) don’t support reduce_Scatter, to emulate the behaviour, you need to use AlltoAll with a sum(), which is expensive. (https://github.com/pytorch/pytorch/blob/2b267fa7f28e18ca6ea1de4201d2541a40411457/torch/distributed/nn/functional.py#L317)
    • AMD has their equivalent of nccl, called rccl, which does support reduce_scatter!
    • has an cryptic piece of code to create the 3D parallelism process groups
      • _init_parallel_groups()
      • rewrote it to be clearer :)))

  • data_parallel.utils module

    • e.g. sync_gradients_across_dp

  • pipeline_parallel module

    • engine file
      • contains the PipelineEngine
        • we have AllForwardAllBackwardPipelineEngine (a.k.a G-Pipe)
        • we have OneForwardOneBackwardPipelineEngine (a.ka. 1F1B or Pipe-Dream)
      • the TensorPointer dataclass
        • Dataclass specifying from which rank we need to query a tensor from in order to access data
    • utils file
      • defines get_input_output_pp_ranks(model)
        • to know which ranks to feed the dataloader to

  • tensor_parallel module

    • not clear whether sequence parallelism is actually supported
    • sequence parallel == TensorParallelLinearMode.REDUCE_SCATTER ?
      • (first sync) $g$ is an all-gather operation along the sequence dimension in the forward pass, and reduce-scatter in the backward pass
      • (second sync) $\bar{g}$ is a reduce-scatter in the forward pass, and all-gather in the backward pass
    • Classic TP is TensorParallelLinearMode.ALL_REDUCE
      • (first sync) $f$ is an identity (or splitting) in the forward, and an all-reduce in the backward
      • (second sync) $g$ is an all-reduce in the forward where the matrix are aggregated by summing, identity (or splitting) in the backward
    • functional.py file
      • defines column_linear, row_linear and their async counterparts

  • The parameters files

    • parameters file
      • Defines the base class for all parameters in Nanotronmodels NanotronParameter (inherites from torch.nn.Parameter)
        • each parameter has metadata (a dict)
          • attribute_name
          • tied_parameter info
          • sharded_parameter info
    • sharded_parameters file
      • methods for sharding
        • given a torch.nn.Parameter, a process group, and a split config
          • returns a sharded NanotronParameter
    • tied_parameters file

• nanotron.utils module

  • Includes main_rank_first context

• nanotron.config module

  • Includes all definitions of args
    • for data, parallelism, model,
  • the method get_config_from_file

• nanotron.dataloader file

  • Includes
    • clm_process (causal language modeling preprocessing)
    • get_datasets (get datasets from hf)
    • get_train_dataloader()
